ACS Card Reader Driver Download For Windows 10

Free download - ACS NFC RFID Smart Card Reader Drivers v.4.2.9.0, v.4.2.8.0, v.4.0.6.0 for Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 32. ACS ACR1251 Smart Card Reader Driver 2.1.0.0 for Windows 10 Creators Update 64-bit DOWNLOAD NOW 36 downloads Added on: September 30, 2017 Manufacturer: ACS.

Installation Steps

Step 1: Obtain a CAC Reader

Step 2:CAC Reader driver / Video

Step 3:DoD Certificates

Step 4:ActivClient

Step 4a:Update ActivClient

Step 5:IE adjustments/Video

Log into a CAC enabled website now

Page Quick Links:

Firmware Update for SCR-331

Verify SmartCard Service started

Start Smart Card Service PDFs

Updating a CAC Driver

Plug in your CAC reader NOW

NOTE: Please check and make sure your CAC reader installed BEFORE you attempt to follow the driver installation instructions below. Most of the time, the New hardware wizard will install the CAC reader automatically, negating the need for you to install the driver manually.

To Verify whether your driver did or did not install, follow these instructions:

Plug your CAC reader into your computer before proceeding

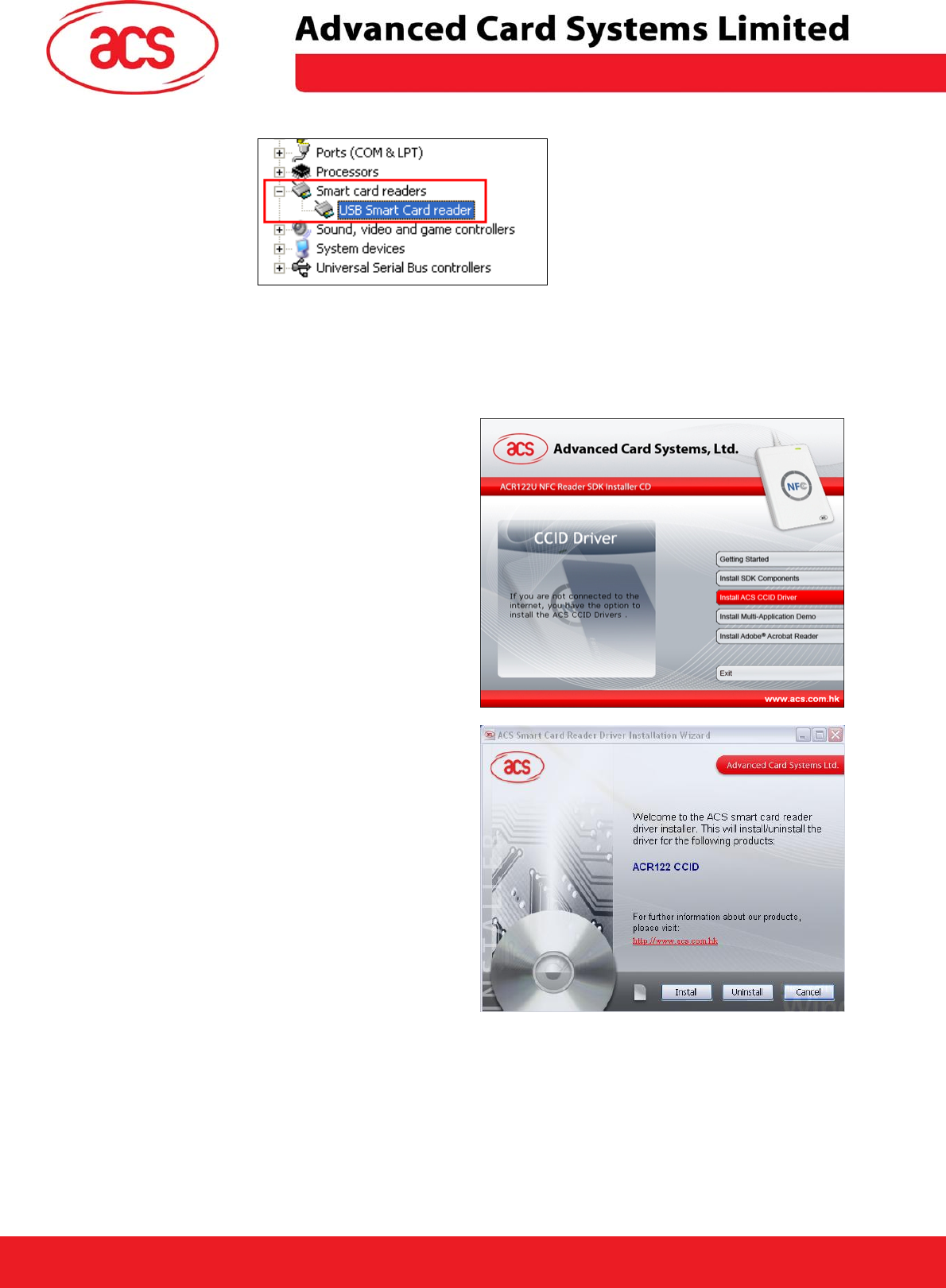

Windows 10: Right click the Windows logo (lower left corner of your screen). Click System, select Device Manager link (upper left corner of the screen), scroll down to Smart card readers, select the little triangle next to it to open it up. If your smart card reader is listed, go to the next step of installing the DoD certificates.

Windows 8.1: Right click Computer, select Properties, Device Manager link (upper left corner of the screen), scroll down to Smart card readers, select the little triangle next to it to open it up. If your smart card reader is listed, go to the next step of installing the DoD certificates. NOTE: If you don't see it, you can also click Start, In the Start Search line type in: devmgmt.msc. (For Windows 8.1 users, you'll right click Start).

If it did not install correctly.. Try this first: Go to Device Manager (Instructions are above), scroll down to Smart Card readers, right click the CAC reader that shows up below Smart Card Readers. It can also show up under unknown devices. Select Uninstall. It will give you a message. Once it is uninstalled, unplug the reader from your computer. Wait a few moments, then plug it back in. It 'should' start to install itself. If that doesn't work, keep reading for other ideas below.

IF you do not see Smart card readers when checking, THEN follow along with the steps below.

To install a driver onto your computer for a CAC reader, you need to first download the correct driver for the hardware you purchased, I have drivers for the most common USB Readers, Keyboard, laptop, & desktop card readers

PROCEED TO STEP 3 ONCE YOU'VE COMPLETED YOUR VERIFICATION OR INSTALLATION

Unzipping - the driver

Windows 10 or 8.1 - Save the zip file to a location of your choosing. Once you have the zip file downloaded, open the zip file (Windows built in zipping program). Copy the folder inside to a new folder. It will unzip the contents, (this is the folder you will need when you are doing the steps below). You can also use the Extract All Files button (on the left under Folder Tasks, under File, Extract All). It will then ask where you want to save the file. I recommend placing a backslash ( ) at the end of the location on the screen.

WinZip- Use the Extract button. It will ask you where you want to save the extracted files to, I recommend your desktop. Click the desktop icon on the left. Push the little yellow folder in the upper right corner of this active window. It will prompt you for a name for the folder (type in CAC Driver). Hit OK, then select Extract (lower right corner of this window). You should now see your new folder on your desktop to open up. Keep this for a later step.

Updating the Driver - Example is for an SCR-331

Windows 10 & 8.1 - Right Click Computer, Select Properties

Click the Device Manager link (on the left side of your screen)

Select the triangle next to Smart Card Readers

Right click the SCRx31 USB Reader, select Update Driver software

Browse my computer.. Select Browse, then desktop (or wherever you made the folder)

NOTE: One person had to select 'Search automatically for updated driver software' (This is very rare)

Select the folder (if using the firmware update driver below, stop at the driver folder, do not 'dig' down to AND or Intel folders) and then OK. Next

Your driver will be installed.

FIRMWARE UPDATE for SCR-331 Reader

(Requires a physical Windows computer, Mac using Bootcamp, or TENS / LPS (see next sentence below). It will NOT work in virtual Windows (examples: VMware, Parallels, or Virtual box)).

Verify your firmware version before going through this process..

1. Go to Device Manager, type: device manager in the search box

Acs Card Reader Driver Download For Windows 10 32-bit

2. Select the arrow next to Smart card readers

Install Card Reader Windows 10

3. Right click on SCR33x USB Smart Card reader

Drivers cape cod laptops hyannis. 4. Select Properties

5. Select Details (tab)

6. Select Hardware Ids

7. The number after &REV_ is your current firmware, if it is0525there is no need to update the firmware.

Intel based Macs can update the firmware using TENS / LPS (instructions on top of PDF page 37 (document page 34)) Video instructions

The firmware update 'should' fix the following problems:

A. Card reader is not recognized

B. Shows up as 'STCII Smart Card Reader'

C. Shows up as 'USB Smart Card Reader' (not necessarily a problem)

D. Does not read your 'Gemalto TOP DL GX4 144', 'Oberthur ID One 128 v5.5 Dual' CAC.

E. Does not read your CAC when using your Mac

NOTE: We are hearing Mac users having problems with the SCR-331 reader. A recommendation is to get a Mac compatible reader.

Installation Instructions:

1. Download update file

2. Unzip the downloaded file (by Right-clicking and selecting Extract All)

3. Update the driver present in the 'driver' folder (by following guidance above)

4. Once the driver is updated, Run FWUPDATE.EXE (lightning bolt) in the 'app' folder to update the firmware. Select the default choices.

5. Close all programs, restart your computer

NOTE: If you computer fails to recognize the CAC reader driver, you may need to try a different computer to do the update.

Now your SCR-331 reader can be used with Windows 10 & 8.1, or Mac.

FIRMWARE UPDATE for SCR-3310 reader

(V1 ONLY (doesn't have V2 after SCR-3310 on the label))

(Requires a physical Windows computer, Mac using Bootcamp, or TENS / LPS (see next sentence below). It will NOT work in virtual Windows (examples: VMware, Parallels, or Virtual box)).

Intel based Macs can update the firmware using TENS / LPS (instructions on PDF page 37 (document page 34)) Video instructions

Open Card Reader Windows 10

NOTE: DO NOT use this update on a V2 reader. There is no firmware update for a V2 reader because it is already updated.

Acs Smart Card Reader

Click on FWUpdate.exe, this will update your firmware to version 5.26

CHECK SERVICES to make sure Smart Card is running

(This Video shows a very basic version on how to start the service (start at 44 seconds))

If your CAC reader is still not seen by ActivClient, make sure that the Smart Card service is running.

Here's how: Go to: Start, Search programs and files (in Windows 10 & 8.1), type: Services.msc Scroll down to Smart card, double click it and set it to automatic and click Start

If you are unable to start the service; It doesn't show up; ActivClient still says no reader attached; or it acknowledges you have a CAC in the reader (but you can't access it) follow these registry edits below.

Windows 10 & 8.1

Acs Card Reader Driver Download For Windows 10 3 8 5

Automated method (double click the .reg file inside the .zip folder)

Manual method for Windows 10 & 8.1, (mirror your registry settings to the PDF links below).

Anytime you make changes to the Registry it is a recommended you back it up first

Card Reader Driver Windows 10

If ActivClient still does not see the CAC reader, try these ideas (if they don't work, your only other option is reloading Windows onto your computer).

Windows 7 Card Reader Download

&Changes& &- Added Win10 support &- Updated the driver& & &Installation:& &1. Before running the Setup program, please unplug the reader first. &2. Double click the 'Setup.exe' program icon to launch the installer. If your system does not have installed Windows Installer 2.0 or above, you will receive a warning message and you need to go to Windows Update to update your system.& &3. Follow the on-screen instructions to install the driver to the system.& &4. After the installation is completed, please plug the reader to the system.& &5. To remove the driver, please go to 'Add or Remove Programs' in Control Panel.& & &About Card Reader Device Driver:& &Installing this software will help your system recognize the card reader device, therefore allowing it to exchange data with various memory card formats such as MMC, SD, SDHC, micro SD, and many others (used by smartphones, cameras, tablets, and similar products). &In addition to that, updating the software’s version might also improve the device’s transfer rate, add support for newly developed features, and fix various problems.& &When it comes to the installation process, most of the updates are made available in an executable or archive format, so the update process should be quite simple: just expand the downloadable package (if necessary), run the setup, and follow the on-screen instructions.& &Therefore, if you consider applying this package, hit the download button and install it on your computer. Constantly check with our website to make sure that you don’t miss a single new release.&& &It is highly recommended to always use the most recent driver version available& &Do not forget to check with our site as often as possible in order to stay updated on the latest drivers, software and games& &Try to set a system restore point before installing a device driver& &This will help if you installed a wrong driver& &Problems can arise when your hardware device is too old or not supported any longer&
